758MHz-803MHz 60W Lineup Solution
|
Driver DXG1PH60P-40N |
Final Stage
DXG1CH08A-540EF |
|
|
|
|
|
Package Type: DFN 7mm×6.5mm |

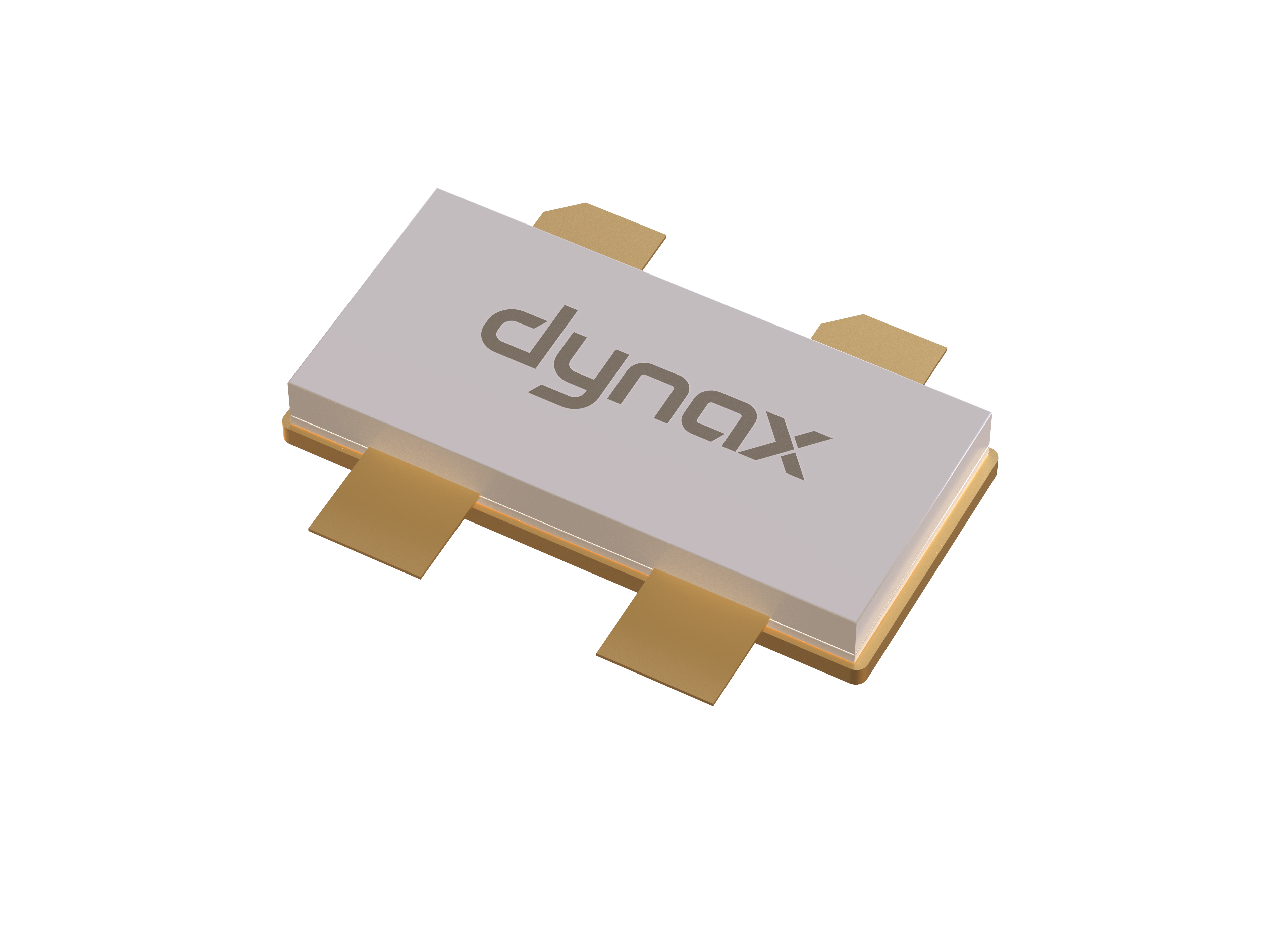

Package Type: 780-4 |
|
CW Pulsed 10%
|
Modulated Signal |
|||
|
Freq (MHz) |
Psat (dBm) |
Gp (dB)@40.3dBm |
DE (%)@40.3dBm |
ACLR (dBc)@ 40.3dBm |
|
1805 |
48.2 |
18.3 |
61.8 |
-33.2 |
|
1842 |
48.2 |
18.4 |
61.8 |
-31.4 |
|
1880 |
48.2 |
18.3 |
62.0 |
-30.0 |
|
Remark : Test Condition CW Pulsed: 10% Duty Cycle, 100uS Duration; Modulated Signal Type: 3.84MHz, 1C_WCDMA, PAR=7.8dB; 64DPCH; Tested without isolator; |
||||
